Thermostat Replacement in Red Oak, TX 75154

IN SHORT: When hot water runs out fast or the ECO keeps tripping in Red Oak, the thermostats are the prime suspects, and moderately hard city water makes sediment-driven misreads common. Call (833) 713-2101 and we will diagnose before replacing: continuity tests on both stats, element checks, and a matched-pair replacement only when the tests say so.

How Thermostat Replacement Plays Out in Red Oak

In Red Oak's newer subdivisions the tanks are young enough that thermostat failure is usually a single-component event, which keeps the fix quick: test, replace the pair, verify, done.

The giveaway in Red Oak is the ECO that keeps tripping. Homeowners reset the red button, get hot water for a day or two, and then it trips again: the classic signature of a thermostat stuck closed.

First ask how old the tank is and when it was last flushed. Heavy sediment plus an aging lower thermostat is the most common pairing we find, and it changes the fix from stats-only to stats-plus-elements. Thermostat calls spike after cold snaps: tanks work harder, cycles lengthen, and marginal stats that limped through fall finally stick or quit in winter.

Heaters in garages with PEX and copper in good shape across Red Oak, and thermostats here fail from heat and cycling more than from defects. First- and second-generation heaters, which pushes marginal stats over the edge, and thermostats and relief valves aging out at 8 to 12 years keeps the sediment coming. When we test, the stat and the sediment usually arrive at the diagnosis together.

Red Oak's Homes and What They Mean for Your Water Heater

The thermostat replacement diagnosis starts with the house around the heater, so here is the Red Oak context that shapes every call we run in 75154.

Red Oak is Ellis County growth-suburbia along I-35E: 1990s to 2000s tract subdivisions, two-story and single-story, heaters in garages, PEX and copper in good shape. Most heaters are first- or second-generation, which keeps failures component-level.

City water is moderately hard municipal supply. At this age of housing stock, the pattern is predictable: thermostats and relief valves aging out at 8 to 12 years while tanks themselves still have life left, which favors repair over replacement.

A classic I-35E corridor suburb with steady new construction pushing south toward Waxahachie.

We test; we don't guess

Thermostat replacement starts with the ECO reset button, because a tripped high-limit is a free fix when it is a one-time event. If it trips again, we test: power verified off at the breaker, access panels and insulation pulled, and a multimeter across both thermostats checking continuity and calibration. The elements get tested too, because a failed element mimics a thermostat failure and replacing stats onto dead elements fixes nothing. We replace upper and lower thermostats as a pair with correctly rated parts for the tank's voltage and wattage, and when sediment is heavy we recommend elements at the same time: opening a scaled tank twice costs more than doing the full job once. After refill and air purge, power goes back on and we verify a true 120 degrees at the tap.

How to tell the thermostat is the problem

A failing thermostat has a recognizable signature. Lukewarm water despite a high dial setting usually means the lower thermostat is not calling for heat, often because a sediment blanket has insulated the lower element and fooled the sensor. Scalding water means a thermostat is stuck closed and the ECO should have tripped; if the ECO keeps tripping, that is the safety doing its job against a runaway stat. Hot water that runs out fast points at a dead lower element circuit. A tripping breaker can be a shorted element, but a welded-shut thermostat contact causes the same symptom. The classic North Texas pattern is sediment-driven: moderately hard water lays down a sediment blanket, the lower thermostat misreads tank temperature, and the homeowner gets half a tank of hot water from a full tank of energy.

Upper, lower, and the safety switch: how it works

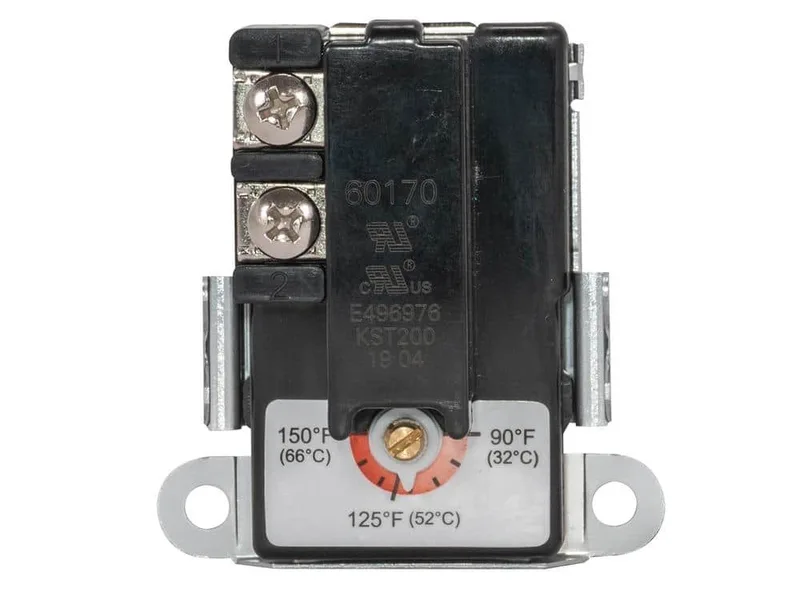

An electric water heater has two thermostats, upper and lower, and they take turns. The upper thermostat heats first; once its half of the tank is satisfied, it hands off to the lower thermostat to finish the job. Neither thermostat heats water directly: they are switches that send 240-volt power to the heating elements. Above them sits the ECO, the energy cut-off or high-limit safety switch, which trips around 170 degrees and kills power to everything if a thermostat sticks on. Gas water heaters work differently: most use a single combination gas control valve and thermostat that meters the burner. When we say thermostat replacement on an electric tank, we mean the upper and lower stats as a matched pair, because when one has aged out, the other is right behind it.

Is it the thermostat, the element, or the gas control?

On an electric tank, three components share the blame for most no-hot-water calls: thermostats, elements, and the ECO. Our testing separates them in minutes: stats get continuity and calibration checks, elements get resistance readings, and the ECO gets a reset-and-watch. On a gas tank there are no upper and lower stats; the combination gas control valve and thermostat does the job, and its failure modes are different: pilot issues, burner that will not stay lit, or water temperature that will not regulate. When a tank is past 8 years with heavy sediment, replacing thermostats and elements together is usually the economical call; on a younger tank with a single failed stat, the stat alone is the fix. Either way the diagnosis comes before the parts, which is how you avoid paying for a thermostat when the element was the problem.

Our thermostat replacement process

Thermostat replacement visits in Red Oak typically follow this sequence, adjusted for what the diagnosis finds:

1. We start at the breaker: power off, locked out, and verified dead at the tank with a meter, because 240 volts deserves respect.
2. We check the ECO reset first; a tripped high-limit from a one-time event is a free fix and we will tell you so.
3. We test both thermostats and both elements with a multimeter, separating stat failures from element failures before any part comes off.
4. We drain the tank below the element level, pull the access panels and insulation, and remove the failed thermostats.
5. We install matched upper and lower thermostats rated for your tank, and elements too when sediment or age makes that the smart call.
6. We refill completely, purge air from the lines, restore power, and verify a true 120 degrees at the tap before we leave.
