IN SHORT: A water heater that cannot hold temperature across Midlothian is usually a thermostat story: stuck contacts, dead lower stats, or tripped high-limits, with moderately hard water and limestone dust accelerating the wear. Call (833) 713-2101 for same-visit testing and replacement, and hot water restored before the day is out.

Why Thermostat Replacement Hits Different in Midlothian

Around Midlothian, thermostat calls split two ways: sediment-killed stats in older tanks and simple component aging in newer ones, and our testing tells them apart before any part is ordered.

What brings most Midlothian homeowners to call is temperature that will not sit still: scalding one day, lukewarm the next, as a drifting thermostat loses calibration.

First press the ECO reset button and watch what happens. A reset that holds points at a one-time event; a reset that trips again within a day or two points squarely at a failed thermostat. Thermostat calls spike after cold snaps: tanks work harder, cycles lengthen, and marginal stats that limped through fall finally stick or quit in winter.

In 76065, historic core plus explosive new subdivisions, so thermostat replacement is rarely just a parts swap. Moderately hard municipal supply means we test elements alongside stats, and dust that coats outdoor equipment and clogs intakes. The honest fix addresses the control and the conditions it lives in.

Why Midlothian Plumbing Ages the Way It Does

Midlothian is not generic suburbia when it comes to plumbing, and the details below are why thermostat replacement here follows local patterns.

Midlothian is the cement capital of Texas, and the housing stock tells the town's growth story: a historic downtown core, 1970s-90s subdivisions, and explosive new master-planned growth along US-287. New builds increasingly arrive with tankless units; the older stock runs conventional tanks in garages.

Municipal supply is moderately hard, but Midlothian has a second factor: fine limestone and cement-plant dust that coats outdoor equipment and clogs air intakes and inlet screens. Outdoor or garage tankless units here need their filters checked more often than the manual suggests.

The cement kilns on the skyline, the historic downtown, and some of the fastest subdivision growth in Ellis County define the area.

The two control systems, and how to tell them apart

Open the access panels and you will know in seconds. An electric tank has two rectangular panels, upper and lower, each hiding a thermostat and an element behind insulation, with heavy 240-volt wiring. A gas tank has a single control box at the base with a temperature dial, a pilot or igniter assembly, and a gas line; the thermostat and gas valve are one combined unit. The distinction decides the entire service: electric tanks get thermostat-pair replacement and element testing, gas tanks get combination-control diagnosis with gas-safety steps. If you are unsure which you have, check the breaker panel for a double-pole water-heater breaker; its presence means electric. Either way, tell us when you call so the tech brings the right parts the first time.

Inside your water heater's controls

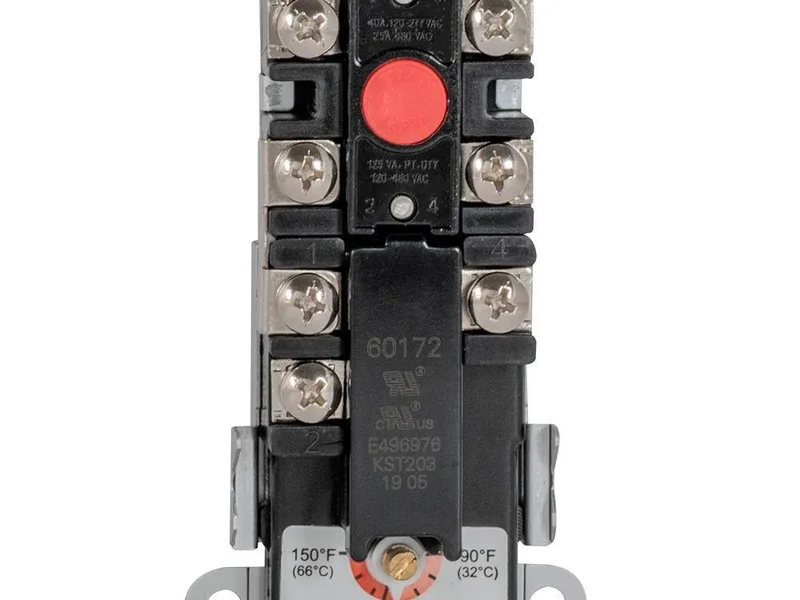

An electric water heater has two thermostats, upper and lower, and they take turns. The upper thermostat heats first; once its half of the tank is satisfied, it hands off to the lower thermostat to finish the job. Neither thermostat heats water directly: they are switches that send 240-volt power to the heating elements. Above them sits the ECO, the energy cut-off or high-limit safety switch, which trips around 170 degrees and kills power to everything if a thermostat sticks on. Gas water heaters work differently: most use a single combination gas control valve and thermostat that meters the burner. When we say thermostat replacement on an electric tank, we mean the upper and lower stats as a matched pair, because when one has aged out, the other is right behind it.

Diagnosis first, parts second

Thermostat replacement starts with the ECO reset button, because a tripped high-limit is a free fix when it is a one-time event. If it trips again, we test: power verified off at the breaker, access panels and insulation pulled, and a multimeter across both thermostats checking continuity and calibration. The elements get tested too, because a failed element mimics a thermostat failure and replacing stats onto dead elements fixes nothing. We replace upper and lower thermostats as a pair with correctly rated parts for the tank's voltage and wattage, and when sediment is heavy we recommend elements at the same time: opening a scaled tank twice costs more than doing the full job once. After refill and air purge, power goes back on and we verify a true 120 degrees at the tap.

The failure signatures of a bad thermostat

A failing thermostat has a recognizable signature. Lukewarm water despite a high dial setting usually means the lower thermostat is not calling for heat, often because a sediment blanket has insulated the lower element and fooled the sensor. Scalding water means a thermostat is stuck closed and the ECO should have tripped; if the ECO keeps tripping, that is the safety doing its job against a runaway stat. Hot water that runs out fast points at a dead lower element circuit. A tripping breaker can be a shorted element, but a welded-shut thermostat contact causes the same symptom. The classic North Texas pattern is sediment-driven: moderately hard water lays down a sediment blanket, the lower thermostat misreads tank temperature, and the homeowner gets half a tank of hot water from a full tank of energy.

What happens during your thermostat visit

Thermostat replacement visits in Midlothian typically follow this sequence, adjusted for what the diagnosis finds:

1. We start at the breaker: power off, locked out, and verified dead at the tank with a meter, because 240 volts deserves respect.
2. We check the ECO reset first; a tripped high-limit from a one-time event is a free fix and we will tell you so.
3. We test both thermostats and both elements with a multimeter, separating stat failures from element failures before any part comes off.
4. We drain the tank below the element level, pull the access panels and insulation, and remove the failed thermostats.
5. We install matched upper and lower thermostats rated for your tank, and elements too when sediment or age makes that the smart call.
6. We refill completely, purge air from the lines, restore power, and verify a true 120 degrees at the tap before we leave.
