Heating Element Replacement in Waxahachie, TX 75165

Two Hidden Workhorses Inside Your Water Heater

Inside every electric water heater are two hardworking parts you've probably never seen: the upper and lower heating elements. They're simple metal loops that turn electricity into hot water — and in North Texas, hard water kills them regularly. When an element burns out, you get the classic symptoms: lukewarm showers, hot water that runs out in minutes, or a breaker that keeps tripping. The good news is that element replacement is one of the quickest, most affordable water heater repairs there is — usually done in about an hour, with hot water back the same day.

A standard residential electric water heater has two heating elements — one behind an upper access panel, one behind a lower — each typically rated 4,500 watts at 240 volts. They work in sequence, not simultaneously: the upper element (with its thermostat) heats the top of the tank first, then hands off to the lower element for the bulk of the water. Screw-in elements are the modern standard; older heaters may use flange or bolt-in elements held by four bolts. Either way, the element is a resistive metal loop sealed into the tank with a gasket, doing its work fully submerged.

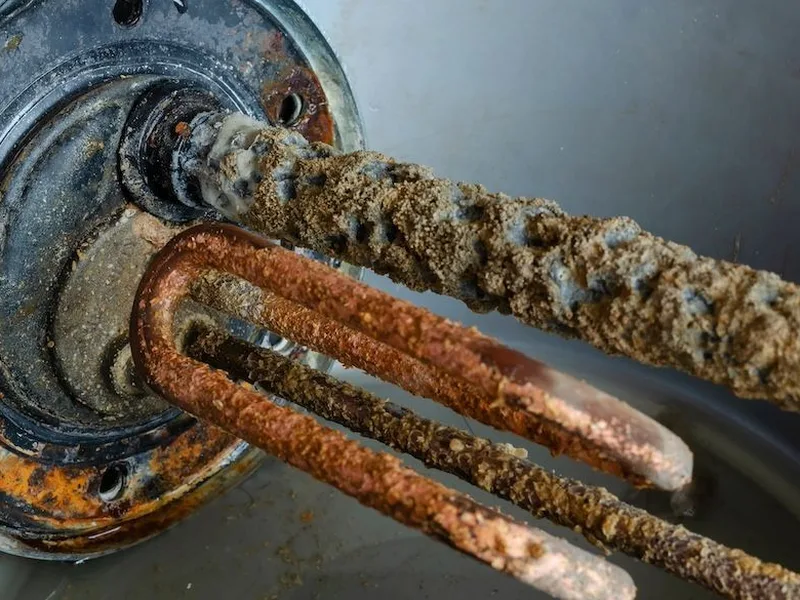

What destroys elements is scale. North Texas water leaves calcium and magnesium deposits on every hot surface, and an element running at full wattage under a crust of scale can't shed its heat into the water. It overheats locally, the sheath weakens, and eventually it burns through or shorts to ground — which is why a failed element so often announces itself with a tripped breaker. Sediment in the tank bottom makes it worse for the lower element, which sits closest to the mineral bed.

The Waxahachie Factor: Victorian-era to new subdivisions Homes Meet Hard Water

City water from Lake Waxahachie, moderately hard. In the historic district, century-old supply piping contributes rust and scale that migrates into every downstream tank. The lower element sits inches above the tank bottom — exactly where that sediment settles. Coated in mineral crust, it can't shed heat into the water, so the sheath overheats, weakens, and burns through or shorts to ground. That's the tripped breaker, the lukewarm shower, the hot water that quits halfway through the tub. The upper element fails less often but fails the same way; when we test Waxahachie heaters, the meter usually tells a story the water chemistry already wrote.

Waxahachie pairs one of Texas's great Victorian historic districts with booming new subdivisions — gingerbread homes from the 1890s–1920s near downtown, mid-century ranches in between, and production rooftops on the edges. In the historic homes, water heaters occupy retrofitted closets, additions, and crawlspace-adjacent spaces; access is the adventure. In the new areas, it's builder-grade tanks in garages hitting their first failure window. What that housing history means for elements: many Waxahachie heaters are running original-wattage elements in tanks that have never been flushed, behind access panels nobody has opened in a decade. We often find the drain valve frozen solid, the thermostats drifted, and both elements scaled beyond testing — which is why an element call here usually becomes a full assessment: elements, thermostats, anode rod, and drain valve in one visit, so a single service call actually solves the problem.

Historic homes: cramped closets and retrofitted nooks. New subdivisions: garages and attics. The access challenge in the historic core rewards technicians who diagnose precisely before disassembling anything. Where the heater sits affects the repair. Garage installs give us room to work and easy hose routing for the drain-down; cramped closets demand patience and care with the 240-volt wiring. In Waxahachie attics — where some two-story homes mount their heaters — element replacement means protecting ceilings and flooring from every drop of drain water. And in older homes we always verify the electrical panel and breaker condition before restoring power, since a weak breaker mimics element symptoms.

Consider an 1890s gingerbread home near the square where the water heater lives in a closet added sometime around the Truman administration: showers going lukewarm by midweek, the breaker tripping twice, recovery stretching to hours. Testing showed the lower element burned open and the upper one scaled nearly to failure — both victims of the same unflushed tank. One visit, two new elements, fresh gaskets, a full flush, and the Waxahachie household was back to long hot showers. That's the pattern here: the water writes the diagnosis, and maintenance decides whether it repeats.

What Victorian-era to new subdivisions Construction Means for Your Electric Heater

Waxahachie pairs one of Texas's great Victorian historic districts with booming new subdivisions — gingerbread homes from the 1890s–1920s near downtown, mid-century ranches in between, and production rooftops on the edges. In the historic homes, water heaters occupy retrofitted closets, additions, and crawlspace-adjacent spaces; access is the adventure. In the new areas, it's builder-grade tanks in garages hitting their first failure window.

The Ellis County seat — stunning courthouse square, historic homes, and the Scarborough Renaissance Faire down the road. Preservation-minded homeowners who maintain 130-year-old houses understand that components fail and get replaced; they just want it done right in tight quarters.

For element work, Waxahachie's housing stock sets the checklist: test both elements and both thermostats, inspect the anode rod while the tank is open, and assess the drain valve before it becomes the emergency. One visit, full picture — because the element is rarely the only thing the water has been working on.

7 Signs Your Heating Element Has Failed

Element failure has a recognizable signature. If any of these sound familiar, a meter test will confirm it in minutes:

• No hot water at all: Both elements failed, a thermostat failed alongside them, or power isn't reaching the heater — but a burned-out element pair is a prime suspect, especially in hard-water areas. A technician checks the breaker and tests each element with a multimeter before condemning anything; the fix is often two elements and an hour of labor, not a new heater.
• Lukewarm water that never gets truly hot: Classic single-element failure. With only the upper element working, you get a tank-top's worth of hot water that the lower two-thirds never reach. The shower starts warm and fades fast. This is the most common element symptom we see, and it almost always traces to a scaled-up, burned-out lower element.
• Hot water runs out much faster than it used to: When the lower element dies, the tank's effective capacity collapses — you're heating the top third and coasting on it. A household that used to run two showers back-to-back suddenly can't finish one. If recovery time has also stretched out, the element diagnosis is nearly certain.
• Breaker keeps tripping: A failed element often shorts to ground as it burns through, which trips the breaker or the heater's high-limit reset button. Resetting repeatedly without fixing the short just repeats the trip — and a shorted element left energized is a safety concern, not an inconvenience. This symptom deserves prompt attention.
• Popping, rumbling, or crackling from the tank: That kettle-like rumbling is water trapped under sediment flashing to steam — and the lower element is sitting in that sediment bed, overheating under its scale coating. Noise plus declining performance means the lower element is living on borrowed time, and the tank needs flushing whether the element is replaced or not.
• Slow recovery after heavy use: Used to get hot water back in 30–40 minutes; now it takes hours. A weakened element still draws current but delivers less heat — scale-insulated and dying. Testing will show it: proper resistance for a 4,500-watt element is around 12–13 ohms, and a failing one reads open or wildly off.
• Rusty or discolored hot water: Sometimes the symptom isn't temperature but water quality: rust-colored hot water (cold runs clear) can indicate a failing element gasket or corrosion around the element port. It's also a sign the anode rod is depleted and the tank is starting to corrode — worth a full assessment, not just an element swap.

Our Element Replacement Process in Waxahachie

Here's exactly what happens when we handle heating element replacement in Waxahachie — no surprises, no guesswork:

Step 1 — Power off and verified dead. Electric water heater work starts at the breaker, not at the tank. We switch off the double-pole breaker, lock it out if the panel allows, and verify zero voltage at the heater with a non-contact tester and a meter. Heaters wired without a local disconnect get extra caution. No verified-dead, no wrenches — that's the rule.

Step 2 — Testing to confirm the diagnosis. Before replacing anything, we test. Each element gets a continuity and resistance check with a multimeter, and the thermostats get tested too — because a failed upper thermostat mimics a failed element, and replacing the wrong part wastes everyone's time. We identify exactly which element (or elements) failed and confirm the thermostats are healthy.

Step 3 — Draining below the element line. The cold-water inlet closes, a hot-water faucet opens to break vacuum, and the tank drains below the level of the element being replaced — for a lower element, that's most of the tank. We connect a hose to the drain valve and route it safely. Slow or clogged drain valves get worked carefully; a disintegrating plastic drain valve is replaced with a brass ball valve while we're at it.

Step 4 — Removing the old element. Access panels and insulation come off, wires are disconnected and labeled, and the old element comes out with an element wrench — screw-in types unthread, flange types unbolt. We inspect what comes out: a scale-caked, split-sheathed element confirms the hard-water diagnosis and tells us what to recommend for prevention.

Step 5 — Installing the new element with a fresh gasket. The new element matches the original wattage and voltage — never upgraded without verifying the wiring and breaker can handle it. It goes in with a brand-new gasket (gaskets are never reused), torqued to seal without cracking the port. Wires reconnect to the correct terminals, insulation and panels go back on.

Step 6 — Refill completely, purge air, then restore power. This step is where DIY element jobs go wrong: the tank must be completely full and air purged from the lines BEFORE the breaker goes back on. An element energized in air — 'dry-fired' — destroys itself in seconds. We refill, run hot taps until the air stops sputtering, check the element port for weeping, then restore power and verify proper heating and thermostat cycling.

What Element Replacement Costs in Waxahachie

Heating element replacement in the DeSoto area typically runs $175 to $350 for a single element, parts and labor — treat that as a planning figure. Replacing both elements (often the smart move when one has failed from scale, since the other lived in the same water) usually lands in the $250 to $450 range. Flange/bolt-in elements on older heaters can run slightly higher due to parts and labor.

What moves the number: accessibility (open garage versus cramped closet), whether the drain valve cooperates or needs replacement, and whether we add prevention while we're in there — a tank flush, an anode rod inspection, or a second element. Compared against a full heater replacement at $1,200-plus, element replacement on a sound tank under 10 years old is the clear value play.

Making the New Elements Last

New elements last longest in maintained tanks. Flush the tank annually — or at least every couple of years — to keep sediment off the lower element. Have the anode rod checked every 3 to 5 years; in hard water it depletes faster, and a dead anode lets the tank itself start corroding. If your elements keep failing every few years, that's your water telling you to consider a softener — it's the only fix that addresses the cause rather than the symptom.

Never let the tank run dry with power on, and never restore power after any drain-down until the tank is verifiably full and purged of air — dry-firing kills a brand-new element in under a minute. Keep the thermostat at 120°F: hotter settings scale elements faster and risk scalding with zero benefit.
