Heating Element Replacement in Dallas, TX 75224

Two Hidden Workhorses Inside Your Water Heater

If your electric water heater suddenly can't keep up — the shower goes lukewarm, the tub fills halfway with hot water then turns cold, or the breaker labeled "water heater" keeps tripping — you're almost certainly looking at a failed heating element. Electric tanks heat with two elements working in sequence, and when one dies, the other can't carry the load alone. Replacement is straightforward for a professional: power off, drain below the element, swap in a new one with a fresh gasket, refill, and restore power. Most jobs finish inside an hour.

Heating elements are elegantly simple: electricity flows through a resistive coil, the coil gets hot, the water around it gets hot. Upper and lower thermostats orchestrate the sequence so you get fast recovery at the top of the tank and full-tank heating below. The whole assembly lives behind small access panels on the side of the heater — out of sight, out of mind, until the hot water fades.

The enemy is always the same: mineral scale from hard water. Scale coats the element like insulation, trapping heat in the metal sheath instead of letting it flow into the water. The element runs hotter and hotter at its surface until the sheath fails — sometimes burning open (no hot water), sometimes shorting to the tank (tripped breaker, and a potential safety issue). In hard-water territory, an element that lasts a decade is the exception; three to six years is the honest expectation without water treatment.

The Dallas Factor: 1950s to 1970s Homes Meet Hard Water

Elements don't die of old age so much as of insulation — mineral insulation. Dallas Water Utilities water at moderate hardness. Low-lying lots near the lake see more soil moisture fluctuation, which keeps slab foundations moving seasonally — slow, relentless stress on rigid gas connections and copper joints at the water heater. Every heating cycle bakes another microscopic layer of calcium onto the element sheath. The element keeps drawing its full 4,500 watts, but the heat can't reach the water, so the metal itself runs hotter and hotter until it fails. In Dallas we measure element life in flush cycles as much as in years: tanks flushed annually keep elements alive far longer than tanks that haven't been touched since installation.

Southwest Dallas near Mountain Creek Lake: 1950s to 1970s ranch homes, a mix of slab and pier-and-beam, built for working families and still serving them. These are straightforward houses with straightforward plumbing — but sixty years of service means original gas risers, aging water service lines, and water heaters on their third or fourth generation. Two-story 1970s homes in the area often hide the heater in the attic. Era matters for parts, too. Older Dallas heaters may carry flange/bolt-in elements rather than modern screw-in types, and some 1970s–80s units run lower-wattage elements that recover slowly even when healthy. We match replacements to the heater's original specification and verify the circuit can support it — because the wrong element, however well installed, is a breaker trip (or worse) waiting to happen.

Garages are the norm; carport-adjacent utility closets appear in the 1950s ranches. Attic installs in two-story 1970s homes create the classic ceiling-stain emergency when a tank or fitting lets go. The drain-down is where placement shows. A garage heater drains to the driveway in minutes; a closet or attic heater needs careful hose routing and sometimes a pump. Dallas homes with original plastic drain valves get special attention — those valves crumble when operated after a decade, and we'd rather replace a fifteen-dollar valve proactively than flood a utility closet mid-job. Every element replacement here includes a leak check at the port and a verified-full refill before the breaker goes back on — the dry-fire mistake is never worth the seconds it saves.

Consider a 1965 ranch off Kiest Boulevard on its third water heater, with the original gas line still doing its duty: showers going lukewarm by midweek, the breaker tripping twice, recovery stretching to hours. Testing showed the lower element burned open and the upper one scaled nearly to failure — both victims of the same unflushed tank. One visit, two new elements, fresh gaskets, a full flush, and the Dallas household was back to long hot showers. That's the pattern here: the water writes the diagnosis, and maintenance decides whether it repeats.

What 1950s to 1970s Construction Means for Your Electric Heater

Southwest Dallas near Mountain Creek Lake: 1950s to 1970s ranch homes, a mix of slab and pier-and-beam, built for working families and still serving them. These are straightforward houses with straightforward plumbing — but sixty years of service means original gas risers, aging water service lines, and water heaters on their third or fourth generation. Two-story 1970s homes in the area often hide the heater in the attic.

Near Mountain Creek Lake and Dallas Executive Airport, along corridors like Illinois Avenue and Kiest Boulevard — established, working-class southwest Dallas. Homes here get fixed, not flipped, which is why component-level repairs like valve and element replacement make so much economic sense.

In Dallas, 1950s to 1970s construction means an element call often reveals companion issues: drifted thermostats, a frozen drain valve, an anode rod years past done. We check all of it in the same visit and show you what's urgent versus what's worth watching — so the element you came for isn't just the first of three service calls.

7 Signs Your Heating Element Has Failed

Element failure has a recognizable signature. If any of these sound familiar, a meter test will confirm it in minutes:

• No hot water at all: Both elements failed, a thermostat failed alongside them, or power isn't reaching the heater — but a burned-out element pair is a prime suspect, especially in hard-water areas. A technician checks the breaker and tests each element with a multimeter before condemning anything; the fix is often two elements and an hour of labor, not a new heater.
• Lukewarm water that never gets truly hot: Classic single-element failure. With only the upper element working, you get a tank-top's worth of hot water that the lower two-thirds never reach. The shower starts warm and fades fast. This is the most common element symptom we see, and it almost always traces to a scaled-up, burned-out lower element.
• Hot water runs out much faster than it used to: When the lower element dies, the tank's effective capacity collapses — you're heating the top third and coasting on it. A household that used to run two showers back-to-back suddenly can't finish one. If recovery time has also stretched out, the element diagnosis is nearly certain.
• Breaker keeps tripping: A failed element often shorts to ground as it burns through, which trips the breaker or the heater's high-limit reset button. Resetting repeatedly without fixing the short just repeats the trip — and a shorted element left energized is a safety concern, not an inconvenience. This symptom deserves prompt attention.
• Popping, rumbling, or crackling from the tank: That kettle-like rumbling is water trapped under sediment flashing to steam — and the lower element is sitting in that sediment bed, overheating under its scale coating. Noise plus declining performance means the lower element is living on borrowed time, and the tank needs flushing whether the element is replaced or not.
• Slow recovery after heavy use: Used to get hot water back in 30–40 minutes; now it takes hours. A weakened element still draws current but delivers less heat — scale-insulated and dying. Testing will show it: proper resistance for a 4,500-watt element is around 12–13 ohms, and a failing one reads open or wildly off.
• Rusty or discolored hot water: Sometimes the symptom isn't temperature but water quality: rust-colored hot water (cold runs clear) can indicate a failing element gasket or corrosion around the element port. It's also a sign the anode rod is depleted and the tank is starting to corrode — worth a full assessment, not just an element swap.

Our Element Replacement Process in Dallas

Here's exactly what happens when we handle heating element replacement in Dallas — no surprises, no guesswork:

Step 1 — Power off and verified dead. Electric water heater work starts at the breaker, not at the tank. We switch off the double-pole breaker, lock it out if the panel allows, and verify zero voltage at the heater with a non-contact tester and a meter. Heaters wired without a local disconnect get extra caution. No verified-dead, no wrenches — that's the rule.

Step 2 — Testing to confirm the diagnosis. Before replacing anything, we test. Each element gets a continuity and resistance check with a multimeter, and the thermostats get tested too — because a failed upper thermostat mimics a failed element, and replacing the wrong part wastes everyone's time. We identify exactly which element (or elements) failed and confirm the thermostats are healthy.

Step 3 — Draining below the element line. The cold-water inlet closes, a hot-water faucet opens to break vacuum, and the tank drains below the level of the element being replaced — for a lower element, that's most of the tank. We connect a hose to the drain valve and route it safely. Slow or clogged drain valves get worked carefully; a disintegrating plastic drain valve is replaced with a brass ball valve while we're at it.

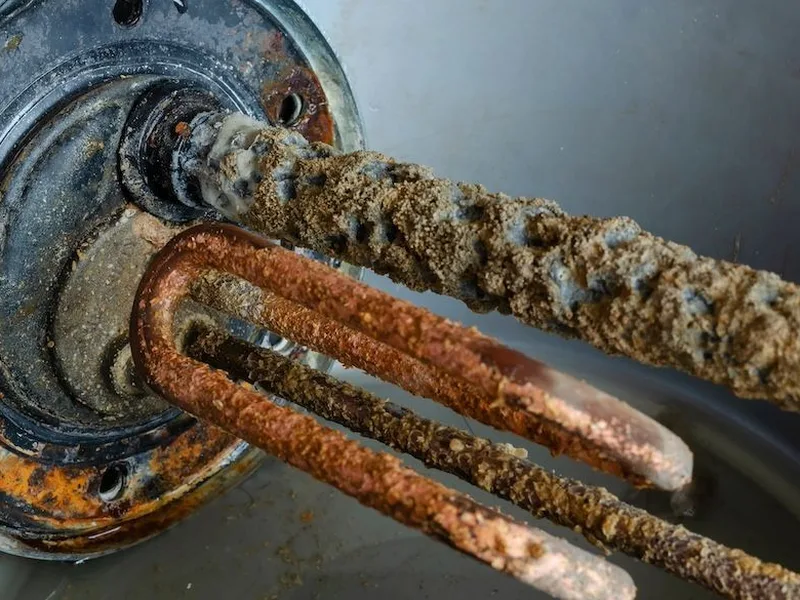

Step 4 — Removing the old element. Access panels and insulation come off, wires are disconnected and labeled, and the old element comes out with an element wrench — screw-in types unthread, flange types unbolt. We inspect what comes out: a scale-caked, split-sheathed element confirms the hard-water diagnosis and tells us what to recommend for prevention.

Step 5 — Installing the new element with a fresh gasket. The new element matches the original wattage and voltage — never upgraded without verifying the wiring and breaker can handle it. It goes in with a brand-new gasket (gaskets are never reused), torqued to seal without cracking the port. Wires reconnect to the correct terminals, insulation and panels go back on.

Step 6 — Refill completely, purge air, then restore power. This step is where DIY element jobs go wrong: the tank must be completely full and air purged from the lines BEFORE the breaker goes back on. An element energized in air — 'dry-fired' — destroys itself in seconds. We refill, run hot taps until the air stops sputtering, check the element port for weeping, then restore power and verify proper heating and thermostat cycling.

What Element Replacement Costs in Dallas

Heating element replacement in the DeSoto area typically runs $175 to $350 for a single element, parts and labor — treat that as a planning figure. Replacing both elements (often the smart move when one has failed from scale, since the other lived in the same water) usually lands in the $250 to $450 range. Flange/bolt-in elements on older heaters can run slightly higher due to parts and labor.

What moves the number: accessibility (open garage versus cramped closet), whether the drain valve cooperates or needs replacement, and whether we add prevention while we're in there — a tank flush, an anode rod inspection, or a second element. Compared against a full heater replacement at $1,200-plus, element replacement on a sound tank under 10 years old is the clear value play.

Making the New Elements Last

New elements last longest in maintained tanks. Flush the tank annually — or at least every couple of years — to keep sediment off the lower element. Have the anode rod checked every 3 to 5 years; in hard water it depletes faster, and a dead anode lets the tank itself start corroding. If your elements keep failing every few years, that's your water telling you to consider a softener — it's the only fix that addresses the cause rather than the symptom.

Never let the tank run dry with power on, and never restore power after any drain-down until the tank is verifiably full and purged of air — dry-firing kills a brand-new element in under a minute. Keep the thermostat at 120°F: hotter settings scale elements faster and risk scalding with zero benefit.
