Heating Element Replacement in Crandall, TX 75114

Symptoms: When an Element Is the Problem

Element failure has a recognizable signature. If any of these sound familiar, a meter test will confirm it in minutes:

• No hot water at all: Both elements failed, a thermostat failed alongside them, or power isn't reaching the heater — but a burned-out element pair is a prime suspect, especially in hard-water areas. A technician checks the breaker and tests each element with a multimeter before condemning anything; the fix is often two elements and an hour of labor, not a new heater.
• Lukewarm water that never gets truly hot: Classic single-element failure. With only the upper element working, you get a tank-top's worth of hot water that the lower two-thirds never reach. The shower starts warm and fades fast. This is the most common element symptom we see, and it almost always traces to a scaled-up, burned-out lower element.
• Hot water runs out much faster than it used to: When the lower element dies, the tank's effective capacity collapses — you're heating the top third and coasting on it. A household that used to run two showers back-to-back suddenly can't finish one. If recovery time has also stretched out, the element diagnosis is nearly certain.
• Breaker keeps tripping: A failed element often shorts to ground as it burns through, which trips the breaker or the heater's high-limit reset button. Resetting repeatedly without fixing the short just repeats the trip — and a shorted element left energized is a safety concern, not an inconvenience. This symptom deserves prompt attention.
• Popping, rumbling, or crackling from the tank: That kettle-like rumbling is water trapped under sediment flashing to steam — and the lower element is sitting in that sediment bed, overheating under its scale coating. Noise plus declining performance means the lower element is living on borrowed time, and the tank needs flushing whether the element is replaced or not.
• Slow recovery after heavy use: Used to get hot water back in 30–40 minutes; now it takes hours. A weakened element still draws current but delivers less heat — scale-insulated and dying. Testing will show it: proper resistance for a 4,500-watt element is around 12–13 ohms, and a failing one reads open or wildly off.
• Rusty or discolored hot water: Sometimes the symptom isn't temperature but water quality: rust-colored hot water (cold runs clear) can indicate a failing element gasket or corrosion around the element port. It's also a sign the anode rod is depleted and the tank is starting to corrode — worth a full assessment, not just an element swap.

What Heating Elements Do (and What Kills Them)

You flip the breaker back on for the third time this week, and an hour later it's tripped again. Or the shower that used to run hot for twenty minutes now goes cold in eight. These are the two most common ways a dead heating element announces itself — and both have the same fix. A technician tests each element with a meter, identifies the failed one (or both), and replaces it with a matching-wattage element and a new gasket. Done right, with the tank refilled before power is restored, your heater runs like new.

Heating elements are elegantly simple: electricity flows through a resistive coil, the coil gets hot, the water around it gets hot. Upper and lower thermostats orchestrate the sequence so you get fast recovery at the top of the tank and full-tank heating below. The whole assembly lives behind small access panels on the side of the heater — out of sight, out of mind, until the hot water fades.

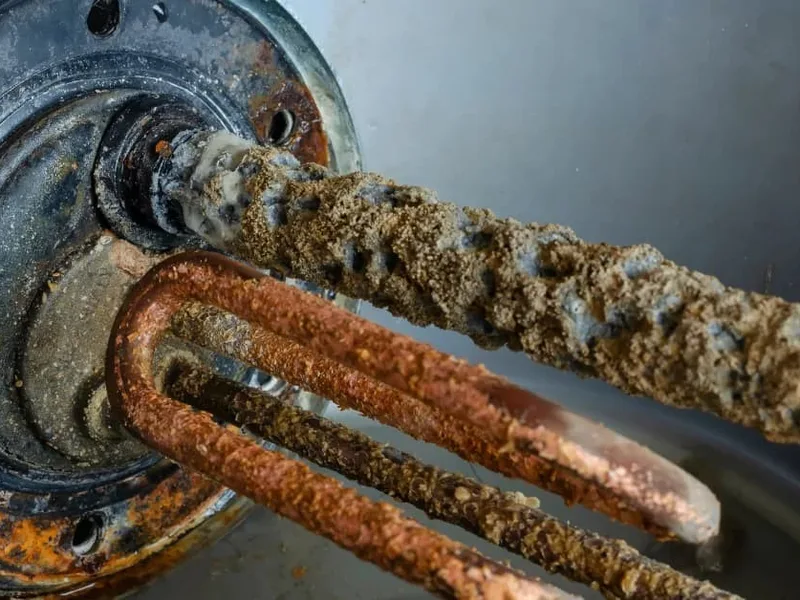

The enemy is always the same: mineral scale from hard water. Scale coats the element like insulation, trapping heat in the metal sheath instead of letting it flow into the water. The element runs hotter and hotter at its surface until the sheath fails — sometimes burning open (no hot water), sometimes shorting to the tank (tripped breaker, and a potential safety issue). In hard-water territory, an element that lasts a decade is the exception; three to six years is the honest expectation without water treatment.

Why Element Jobs Look Different in Crandall

Elements don't die of old age so much as of insulation — mineral insulation. Water here is a tale of two supplies. In town, it's treated municipal water of moderate hardness. On the outskirts, private wells are common — and well water in Kaufman County runs hard, carrying iron and minerals that are brutal on heating elements, chew through anode rods, and leave rust staining as a calling card. If your water comes from a well, your water heater lives a harder life. Period. Every heating cycle bakes another microscopic layer of calcium onto the element sheath. The element keeps drawing its full 4,500 watts, but the heat can't reach the water, so the metal itself runs hotter and hotter until it fails. In Crandall we measure element life in flush cycles as much as in years: tanks flushed annually keep elements alive far longer than tanks that haven't been touched since installation.

Crandall is a town of two eras stitched together: an original core of early-1900s farmhouses and 1950s–1970s homes near downtown, ringed by fast-growing new subdivisions pushing out along US Highway 175. The older homes have the quirks you'd expect — tight crawlspaces, retrofitted plumbing, heaters shoehorned into closets that were never designed for them. The new subdivisions have builder-grade 40- and 50-gallon tanks that are all aging on the same schedule. Era matters for parts, too. Older Crandall heaters may carry flange/bolt-in elements rather than modern screw-in types, and some 1970s–80s units run lower-wattage elements that recover slowly even when healthy. We match replacements to the heater's original specification and verify the circuit can support it — because the wrong element, however well installed, is a breaker trip (or worse) waiting to happen.

Garages in town; on acreage, heaters sometimes live in outbuildings, barns, or well houses — placements with real freeze exposure during North Texas cold snaps. Rural installs also tend to pair with pressure tanks and softeners that add their own maintenance needs. The drain-down is where placement shows. A garage heater drains to the driveway in minutes; a closet or attic heater needs careful hose routing and sometimes a pump. Crandall homes with original plastic drain valves get special attention — those valves crumble when operated after a decade, and we'd rather replace a fifteen-dollar valve proactively than flood a utility closet mid-job. Every element replacement here includes a leak check at the port and a verified-full refill before the breaker goes back on — the dry-fire mistake is never worth the seconds it saves.

Consider a farmhouse on the edge of town where the water heater shares a well house with the pressure tank — and the well water is doing its worst: showers going lukewarm by midweek, the breaker tripping twice, recovery stretching to hours. Testing showed the lower element burned open and the upper one scaled nearly to failure — both victims of the same unflushed tank. One visit, two new elements, fresh gaskets, a full flush, and the Crandall household was back to long hot showers. That's the pattern here: the water writes the diagnosis, and maintenance decides whether it repeats.

What Happens During Your Element Replacement

Here's exactly what happens when we handle heating element replacement in Crandall — no surprises, no guesswork:

Step 1 — Power off and verified dead. Electric water heater work starts at the breaker, not at the tank. We switch off the double-pole breaker, lock it out if the panel allows, and verify zero voltage at the heater with a non-contact tester and a meter. Heaters wired without a local disconnect get extra caution. No verified-dead, no wrenches — that's the rule.

Step 2 — Testing to confirm the diagnosis. Before replacing anything, we test. Each element gets a continuity and resistance check with a multimeter, and the thermostats get tested too — because a failed upper thermostat mimics a failed element, and replacing the wrong part wastes everyone's time. We identify exactly which element (or elements) failed and confirm the thermostats are healthy.

Step 3 — Draining below the element line. The cold-water inlet closes, a hot-water faucet opens to break vacuum, and the tank drains below the level of the element being replaced — for a lower element, that's most of the tank. We connect a hose to the drain valve and route it safely. Slow or clogged drain valves get worked carefully; a disintegrating plastic drain valve is replaced with a brass ball valve while we're at it.

Step 4 — Removing the old element. Access panels and insulation come off, wires are disconnected and labeled, and the old element comes out with an element wrench — screw-in types unthread, flange types unbolt. We inspect what comes out: a scale-caked, split-sheathed element confirms the hard-water diagnosis and tells us what to recommend for prevention.

Step 5 — Installing the new element with a fresh gasket. The new element matches the original wattage and voltage — never upgraded without verifying the wiring and breaker can handle it. It goes in with a brand-new gasket (gaskets are never reused), torqued to seal without cracking the port. Wires reconnect to the correct terminals, insulation and panels go back on.

Step 6 — Refill completely, purge air, then restore power. This step is where DIY element jobs go wrong: the tank must be completely full and air purged from the lines BEFORE the breaker goes back on. An element energized in air — 'dry-fired' — destroys itself in seconds. We refill, run hot taps until the air stops sputtering, check the element port for weeping, then restore power and verify proper heating and thermostat cycling.

Crandall Housing Stock and Your Water Heater's Elements

Crandall is a town of two eras stitched together: an original core of early-1900s farmhouses and 1950s–1970s homes near downtown, ringed by fast-growing new subdivisions pushing out along US Highway 175. The older homes have the quirks you'd expect — tight crawlspaces, retrofitted plumbing, heaters shoehorned into closets that were never designed for them. The new subdivisions have builder-grade 40- and 50-gallon tanks that are all aging on the same schedule.

A cotton-town turned bedroom community, Crandall is growing fast along the 175 corridor — new rooftops, new families, and a lot of water heaters installed by production builders in the last ten to fifteen years. Those builder-grade units are now entering their failure window all at once.

In Crandall, early-1900s farmhouses to new subdivisions construction means an element call often reveals companion issues: drifted thermostats, a frozen drain valve, an anode rod years past done. We check all of it in the same visit and show you what's urgent versus what's worth watching — so the element you came for isn't just the first of three service calls.

Pricing: What Moves the Number

Heating element replacement in the DeSoto area typically runs $175 to $350 for a single element, parts and labor — treat that as a planning figure. Replacing both elements (often the smart move when one has failed from scale, since the other lived in the same water) usually lands in the $250 to $450 range. Flange/bolt-in elements on older heaters can run slightly higher due to parts and labor.

What moves the number: accessibility (open garage versus cramped closet), whether the drain valve cooperates or needs replacement, and whether we add prevention while we're in there — a tank flush, an anode rod inspection, or a second element. Compared against a full heater replacement at $1,200-plus, element replacement on a sound tank under 10 years old is the clear value play.

After the Repair: Protecting Your Investment

New elements last longest in maintained tanks. Flush the tank annually — or at least every couple of years — to keep sediment off the lower element. Have the anode rod checked every 3 to 5 years; in hard water it depletes faster, and a dead anode lets the tank itself start corroding. If your elements keep failing every few years, that's your water telling you to consider a softener — it's the only fix that addresses the cause rather than the symptom.

Never let the tank run dry with power on, and never restore power after any drain-down until the tank is verifiably full and purged of air — dry-firing kills a brand-new element in under a minute. Keep the thermostat at 120°F: hotter settings scale elements faster and risk scalding with zero benefit.
