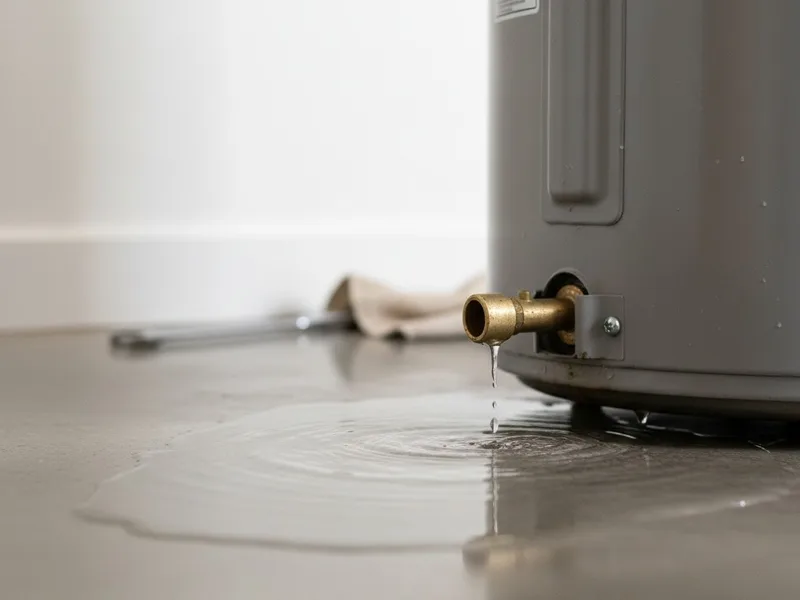

Drain Valve Replacement in Mansfield, TX 76063
The Short Version
Drain valve leaking or stuck in Mansfield, TX 76063? We remove the failed factory valve and install a brass full-port replacement, then flush out the sediment that caused the failure in the first place. Most jobs finish in under an hour. Call (833) 713-2101.
The most-used and least-respected part on your water heater is the little valve at the bottom of the tank. The drain valve is how sediment gets flushed, how the tank gets drained for service, and — when it fails — how a garage in Mansfield 76063, the fast-growing suburb along US-287 ends up with an inch of rusty water. In 76063, drain valves fail for a very local reason: hard water and years of never being flushed leave the valve seized, brittle, or weeping. Then the day comes when someone actually needs it — and it snaps off in their hand.
Drain valve replacement is a compact, same-visit service: we remove the failed factory valve and install a full-port brass ball valve that drains faster, seals positively, and can actually be operated years from now. This page covers why valves fail in Mansfield specifically, the plastic-vs-brass story, what the job looks like in a Mansfield garage or utility closet, and when a leaking valve is really a symptom of a tank that's done.
The heaters in Mansfield 76063 are younger — mostly 2000s and 2010s production-builder installs — but the drain valves are the same cheap plastic the industry has used for decades. What we see here instead of age-failure is sediment-failure: Mansfield's hard water lays down a sediment blanket fast, and in tanks that have never been flushed, the valve outlet sits buried. The valve may still turn, but it drains at a trickle because it's trying to pass water through packed mineral mud.
Install location matters for this job too. Most Mansfield heaters sit in the garage, which gives us room to work and a floor drain (or at least a driveway) for the flush. Attic installs — common in the newer parts of Mansfield — are tighter: we bring containment, verify the pan drain actually drains, and stage the work so a flush never threatens the ceiling below. Either way, the job is planned around your house, not our convenience.
Our Drain Valve Replacement Process
Most valve replacements in Mansfield run under an hour. Here's the sequence:
- Diagnose the source: We dry the area and confirm the water is actually coming from the valve — not the seam above it or a fitting dripping down. Valve-origin leaks get valve repairs; seam leaks get an honest replacement conversation.
- Shut down and drain: Power or gas off, cold inlet closed. We drain the tank through the old valve if it cooperates, or through the T&P port with a pump if the valve is fully seized — either way, controlled and contained.
- Extract the old valve: This is the delicate part. Plastic valves in Mansfield often shear at the threads; we use internal extractors that grip from inside the stub without damaging the tank's threads. Patience here is what separates a valve job from a tank replacement.
- Clean the port and flush sediment: With the valve out, we flush the tank bottom through the open port — this is the most effective sediment removal the tank will ever get, because the restriction is gone. You'll see what comes out; it's usually eye-opening.
- Install the brass full-port valve: Lead-free brass ball valve, proper thread sealant, torqued to spec. Quarter-turn lever, hose-thread outlet, positioned for easy future access.
- Refill, restart, and verify: Tank refilled with air purged from the lines, power or gas restored, and the new valve tested under full pressure — opened and closed — to prove it operates. We also recheck house pressure while we're at it.
- Set the maintenance rhythm: We leave you with a flushing interval that fits Mansfield water — typically annually here — and now you have a valve that makes it a 20-minute homeowner task instead of a gamble.
Valve Failure Symptoms We See in Mansfield
Drain valves rarely fail without warning — the warnings are just easy to ignore until they aren't. Watch for these in Mansfield:
- The valve won't open at all: Mineral-fused threads and a seized stem. Force shears plastic valves; extraction and replacement is the safe path.
- Water weeping from where the valve threads into the tank: Thread-seal failure or a cracked valve body at the base. Tightening rarely holds; replacement is the fix.
- The valve handle crumbles or snaps when touched: Plastic fatigue, end-stage. Don't force it further — call before it becomes an open hole.
- Visible cracks or calcium crust on the plastic body: UV and heat degradation plus mineral wicking — the valve is announcing its retirement. Replace on your schedule, not its.
- A slow drip from the valve stem or handle area: The stem packing has hardened with age and heat — the earliest failure, and the cheapest moment to act.
- Rusty water pooling specifically under the valve: Distinguish this from a seam leak: valve-origin water tracks from the valve itself. We verify with a dry-and-watch test on every call.
What the Drain Valve Does — and Why Mansfield Destroys It
The drain valve sits at the lowest point of the tank, which means it lives in the worst neighborhood in the plumbing system: submerged in sediment, heat-cycled daily, and operated maybe once every few years. Its jobs are draining the tank for service, flushing sediment, and providing the connection point for a hose. Factory valves are overwhelmingly plastic — a nylon or PVC-bodied spigot with a small orifice — because it costs the manufacturer pennies.
In Mansfield, that plastic valve faces hard water and long intervals between flushes. Sediment — mostly calcium carbonate precipitate, essentially limestone sand — settles to the tank bottom and packs around the valve body. Minerals wick into the threads and fuse them. Heat cycling fatigues the plastic. The valve doesn't fail all at once; it degrades until the day someone needs it, and then it fails conspicuously: the handle snaps, the stem weeps, or it opens and won't close.
Valve Leak vs. Tank Leak: Telling Them Apart in Mansfield
Water at the bottom of the tank doesn't automatically mean the tank has failed — and the distinction is worth real money. A drain valve weeps from specific places: the stem packing (a slow drip from around the handle), the threaded connection into the tank (water tracking down the tank side from the valve base), or a crack in the plastic body (a spray or steady dribble from the valve itself). Tank failure, by contrast, shows as weeping from the bottom seam, rust streaks running down from under the jacket, or water appearing with no visible source at any fitting.
On every drain-valve call in Mansfield, we dry the area, pressurize, and watch — source identification before parts. If it's the valve, the repair is straightforward and the tank lives on. If it's the seam or the tank wall, we'll show you exactly what we're seeing and explain why a valve replacement would be wasted money. 76063 has plenty of tanks in the age window where both are possible, so we never guess.
Plastic vs. Brass: Why We Only Install Full-Port Ball Valves
The replacement we install in 76063 is a full-port brass ball valve — a quarter-turn lever operating a solid brass ball with a bore the same diameter as the pipe. Three advantages over the factory plastic spigot. First, flow: a full-port valve drains the tank dramatically faster and passes sediment chunks that would clog a plastic valve's narrow orifice. Second, durability: brass doesn't fatigue like plastic, and a ball valve's seal design doesn't depend on a rubber washer that's been baking for a decade. Third, operability: a quarter-turn lever still moves freely years later, which means the next flush actually happens.
There's a cost difference — brass costs more than plastic — but amortized over the remaining life of the tank it's negligible, and it converts the drain valve from a failure point into a maintenance asset. Every valve we install in Mansfield is lead-free compliant brass, rated for the temperature and pressure of a water heater, with a hose-thread outlet so a standard garden hose connects directly.
Why the First Flush After Years Is the Riskiest
Here's a pattern we warn every Mansfield homeowner about: the tank that hasn't been flushed in 10 years, the valve that hasn't moved in 10 years, and the decision to 'finally do some maintenance' on a Saturday. Old plastic under mineral load is at its most brittle; old stem seals at their hardest. The act of operating the valve is the stress event it can't survive. We are not telling you to never flush — we're telling you that the first flush on a long-neglected tank should be done with a replacement valve on standby, or better, by someone who can replace the valve in the same visit.
Our standard drain-valve service in 76063 is built around this reality: we arrive expecting the old valve to fail during removal, we carry extraction tools for the sheared-stub scenario, and the new brass valve goes in as part of the same job. One visit, one drained tank, valve replaced and sediment flushed. That's the efficient way to do it — and in a town where most tanks are overdue, it's the realistic way.
After the Replacement: Keeping It Working
The new brass valve changes the economics of heater ownership in Mansfield: annual flushing becomes a quick homeowner task instead of a service call, sediment never again gets the chance to concrete itself around the valve, and the tank runs more efficiently because the bottom stays cleaner. Pair the flush with a periodic anode check — every 2 to 3 years on 76063 water — and you've covered the two maintenance items that determine whether a tank dies at year 9 or year 15.
One caution: if your tank is already past 12 years and has never been flushed, the first flush can stir up trouble — dislodged sediment can clog faucet aerators and, rarely, expose a weak spot. That's why we do the first post-replacement flush ourselves as part of the job, so any surprises happen on our watch, not yours.
What 76063 Water Does Inside a Tank
Ask what Mansfield water does to a water heater and the answer is written in mineral. At 8 to 10 grains per gallon, every gallon heated drops a tiny mineral load — and a family of four heats thousands of gallons a year. The scale coats elements and tank bottoms, acting as insulation that forces longer, hotter burn cycles. The sediment buries drain valves and the lower inches of anode rods. The conductivity speeds every corrosion reaction in the tank.
This is why our service recommendations in 76063 are more aggressive than generic advice: shorter anode inspection intervals, annual flushing, and brass-everything at replacement points. It's not upselling — it's matching the maintenance to the water that's actually in the pipes.
Frequently Asked Questions
Can a bad drain valve mean my tank is failing?
Sometimes the valve is the messenger, not the problem. If water at the tank bottom is actually weeping from the bottom seam or the tank wall — not from the valve body, stem, or threads — that's tank failure, and a new valve won't fix it. That's why every drain-valve call starts with a dry-and-watch source test: we confirm where the water originates before recommending parts. In 76063's older housing stock, tanks in the 12-to-20-year range can present either way, so we never guess.
My valve works fine. Should I still replace it preventively?
If it's the original plastic valve on a tank over 10 years old in Mansfield, preventive replacement is reasonable insurance — especially before you actually need the valve in an emergency. Plastic fatigues on a schedule, and hard water doesn't extend it. That said, if the valve operates smoothly and the tank is mid-life with a flush history, we won't push it. We'll give you an honest read on its condition during any service visit.
I tried to flush my heater and now the valve won't shut off. What do I do?
Shut off the cold-water inlet above the tank (or the house main if you can't find it) and call (833) 713-2101. This is the classic first-flush-on-a-neglected-tank scenario: the old valve opened onto a compromised seal and can't reseat. Don't keep fighting the valve — you'll snap it. We carry replacement brass valves for exactly this call and can usually stabilize and repair it the same visit.
My drain valve won't budge. Should I force it?
No — that's how plastic valves shear off at the tank threads and turn a maintenance task into an emergency. If the handle won't move with moderate hand pressure, the valve is telling you it needs replacement, not persuasion. We extract seized and sheared valves routinely with internal tools that grip from inside without damaging the tank's threads. Call us and we'll handle it in one controlled visit.
Why is my drain valve leaking?
Three usual causes in Mansfield: the stem packing has hardened with age and heat (a slow drip around the handle), the threaded connection into the tank has lost its seal, or the plastic body has cracked from fatigue. hard water accelerates all three — mineral fusing at the threads, sediment packing around the body, heat cycling the plastic. A weeping valve is also worth a careful look to confirm the water isn't actually coming from the tank seam above it; we verify the source before replacing anything.
Will the new valve fit my older water heater?
Yes — drain valves are a standard 3/4-inch thread across virtually all residential tanks, old and new. The brass ball valves we install fit any standard tank port. The variable on older Mansfield heaters isn't fit, it's extraction: a valve that's been in place for 15 years in hard water may need internal extraction tools if it shears. We carry those tools on every valve call, so fit and removal are both covered.
Get It Fixed Today in Mansfield
One call handles it: (833) 713-2101. Water Heater Leak Repair Specialists provides drain valve replacement throughout Mansfield, TX 76063 — fast response, honest diagnosis, and repairs built for Mansfield water.
